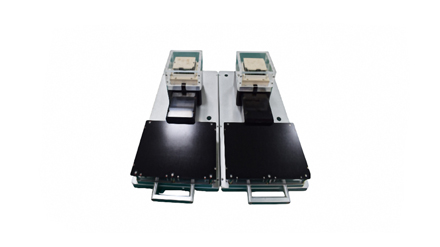

Height difference fixture
Release date：2022-03-12
Fixture application:PCB board test, fixture panel and output
The needle height is inconsistent, there are more than two types
High needle height, better finish soft
Testing of hardened plywood
- Specification parameters
- product details
- After sales guarantee
| Technical parameter | |
|
Jit test point Max
|
Upper fixture：4096X4(16384 point ）
Lower fixture：4096X4(16384 point ）
|
|
Jig size Min
|
30mm*50mm |
|
Jig size Max |
240mm*290mm |
| Test object | Combination of soft and hard board products |
| Minimum needle diameter | 0.04mm |
