Gats
Release date：2022-04-07

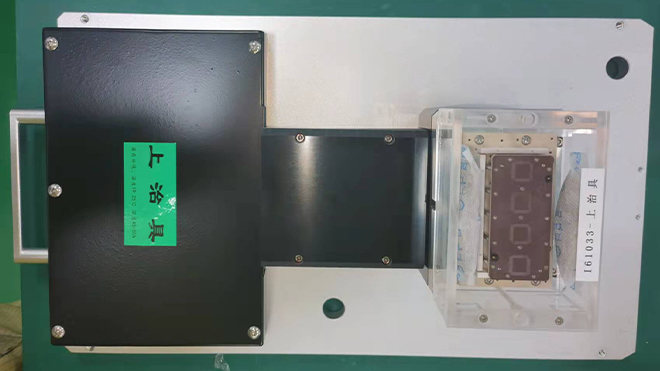

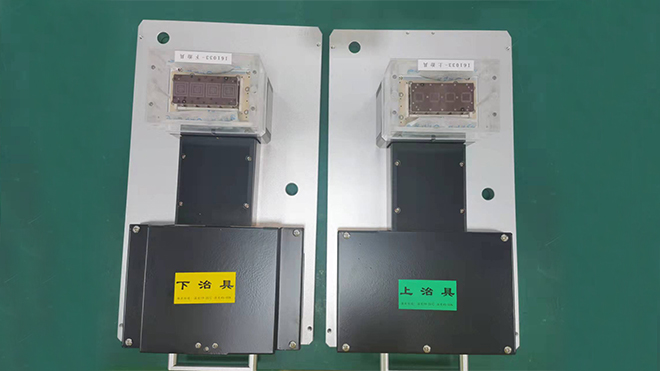

Fixture application:Two wire and four wire low resistance test for FPC / rf-pcb board
- Specification parameters
- product details
- After sales guarantee
| Technical parameter | |
| Jit test point Max | Upper fixture：4096*2(8192 point ） |
| Lower fixture：4096*2(8192 point ） | |
|
Jig size Min |
20mm*30mm |
| Jig size Min | 150mm*250mm |
| Min Diameter | 0.03mm |
| Min Pitch | 0.06mm |
|
Min 4W Test
|
0.1mm(Tin ball 0.06mm) |
|
Min test Pad
|
0.02mm |
