HDI
Release date：2022-03-12

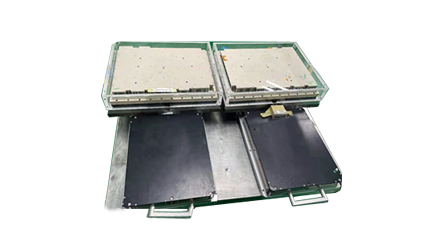

Fixture application：Fixture designed for PCB large size circuit board
- Specification parameters
- product details
- After sales guarantee
| Technical parameter | |
| Maximum points of fixture | Upper fixture：4096*4(16384 points） |
| Lower fixture：4096*4(16384 points ） | |
| Jig size Min | 30mm*50mm |
| Jig size Min | 490mm*370mm |
| Min Diameter | 0.05mm |
| Min Pitch | 0.08mm |
|
Minimum measurable four line point
Min 4W Test
|
0.16mm |
|
Minimum measurable pad
Min test Pad
|
0.035mm |
