M6
Release date：2022-03-12

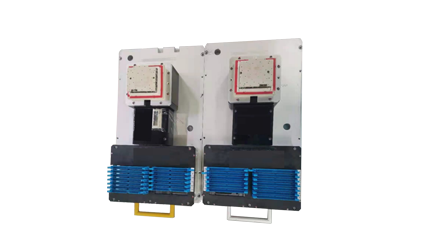

Fixture application:Upper / lower die transfer borrowing point fixture designed for 8K / 16 / 32K machine point limit
- Specification parameters
- product details
- After sales guarantee
| Technical parameters | |
|
Maximum points of fixture
Jit test point Max
|
Upper fixture：4096X4(16384 point）
Lower fixture：4096X4(16384 point）
|
| Jig size Min | 0mm*50mm |
| Jig size Min | 240mm*290mm |
| 0.04mm | |
| Min Pitch | 0.07mm |
|
Minimum measurable four line point
Min 4W Test
|
0.12mm |
|
Minimum measurable pad
Min test Pad
|
0.025mm |
